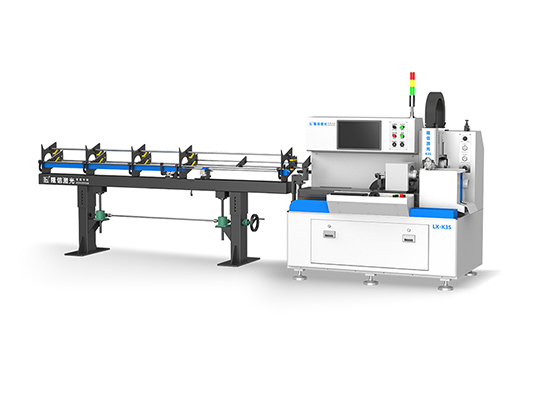

Especially designed for high-precision metal tube processing industries – LX-K3
Rapid speed, non-marking cutting small diameter tubes
- Compared with universal laser tube cutting machines, the cutting speed is 30% faster!
- Machine acceleration up to 1.5G!
- Suitable for diameter 2-25mm round tubes, within 25mm diagonal square, rectangular and oval tubes.
Adopt innovative magnetic levitation linear motor
- Make sure that the machine does not produce spatter and scald the surface of the tube when cutting small diameter tube
Small footprint, fully enclose laser cutting area
- The size of the whole machine is only 1690 x 1750 x 1780 mm
Multi-functional cutting
- Applicable types of tubes: Round, Square, Rectangular, Oval
- Applicable types of cutting: Holes cutting, Angle cutting, Arc cutting, Letters & patterns cutting…
- Applicable types of material: Stainless steel, Carbon steel, Galvanized steel, Brass, Aluminum, Copper…
- Ultra-rapid speed, smooth and burr-free cutting.
High accuracy, save material cost
- Repeat positioning accuracy up to 3-5 μm
- Suitable for a variety of high-precision tube processing industries.
Including medical equipment, condenser tubes, air-conditioning tubes, water purifiers, etc.
LX Self-developed system
- With United Kingdom RADTUBE nesting software, easy to operate, stable performance
| Model No. | LX-K3 |
| Outside Diameter | 2-25mm |
| Square Diameter | Within 25mm diagonal |
| Laser Power | 1000W |
| Laser Source | MAX |
| Laser Head | RAYTOOLS |
| L*W*H (mm) | 1690*1750*1780mm |
| Machine weight | 1.4 Tons |
| Voltage | 380V 50Hz 3Phase (can be customized) |
| Control System | LX LASER |
| Air pressure | 1.6 - 3.0 MPa |
| Nesting Software | RADTUBE / United Kingdom |
| Servo motor & driver | DELTA / Taiwan |
| Pneumatic system | AIRTAC / Taiwan |
| Electrical proportional valve | SMC / Japan |
| Air switch | SCHNEIDER / France |
| Rail | PMI / Taiwan |
