An Expert in metal Pipe
making machine/ tube mill, Since 2003
Production speed up to 20-30 m/min,

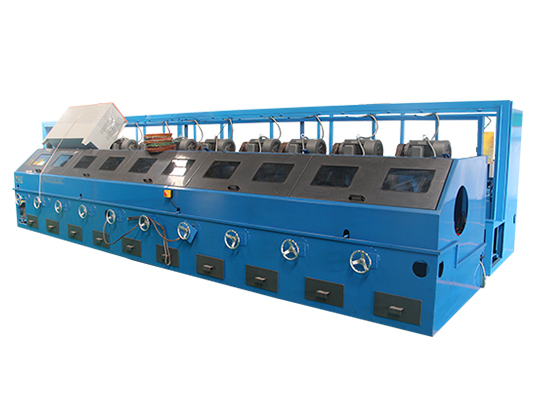

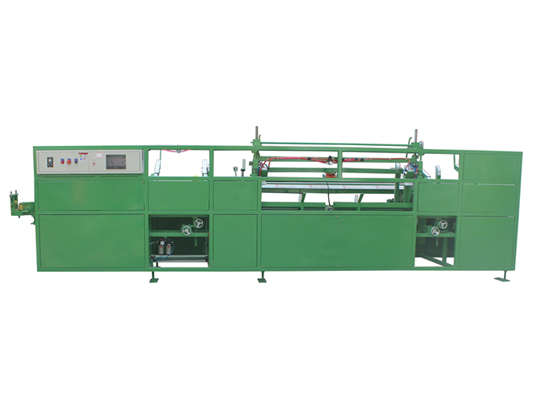

high precision and quality – LX - round tube polishing machine series
Suitable for round pipes from 8mm to 325mm
- Applicable shape: round tube
- Applicable types of material: Stainless steel and Aluminum

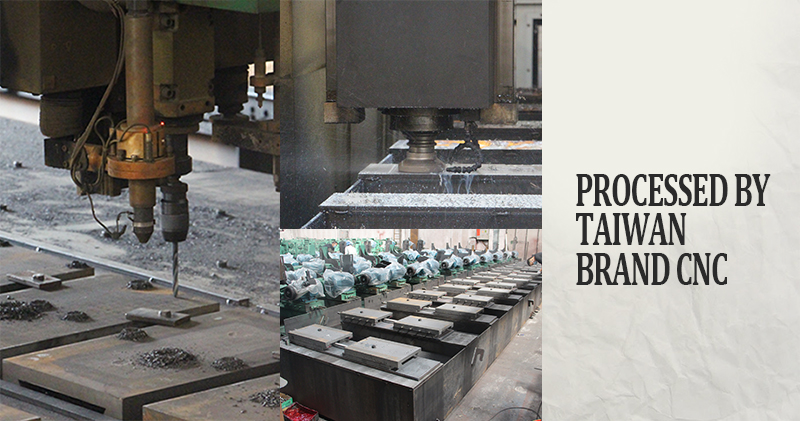

All mechanical parts are processed by Taiwan brand CNC
in order to keep all mechanical parts standardized and uniform
- Easier and faster to obtain original parts for replacing broken parts once occurred during production
- Ensure high precision，more stability and more durable

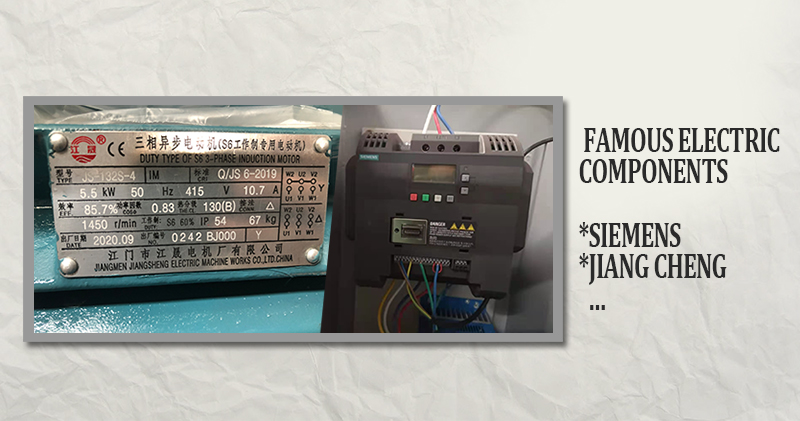

Adopt famous electric components to ensure running stability
- Siemens converter,

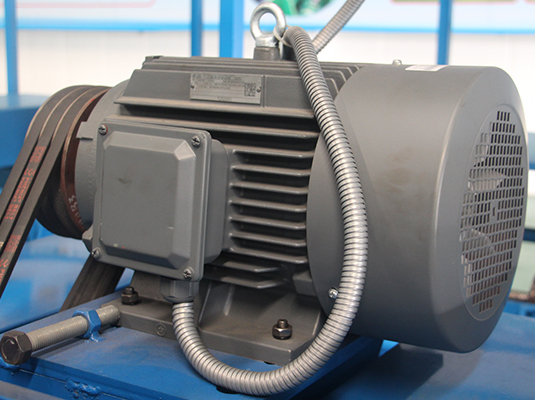

- grinding motor adopt famous Chinese Jiangcheng brand more durable

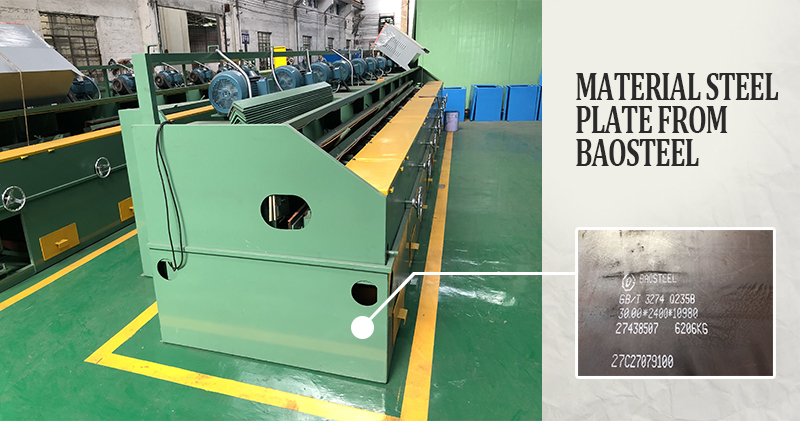

Adopt Q235B material steel plate from BaoSteel, which is within Top 5 all over this world
- Ensure more stable by raw material choose, avoid deform
- Greatly improve durable and long service time

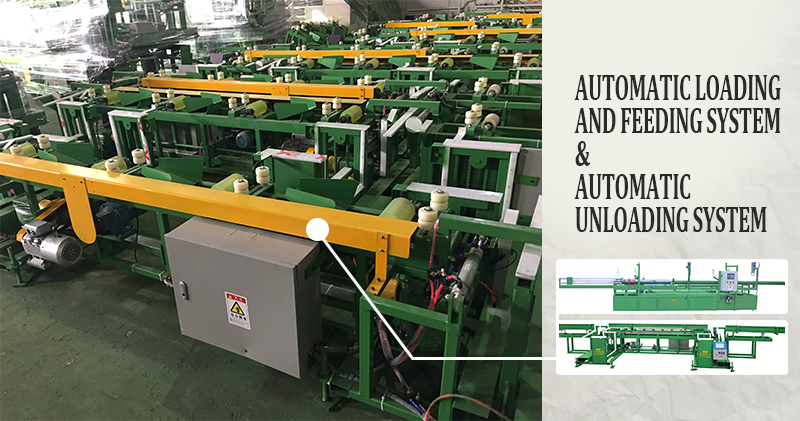

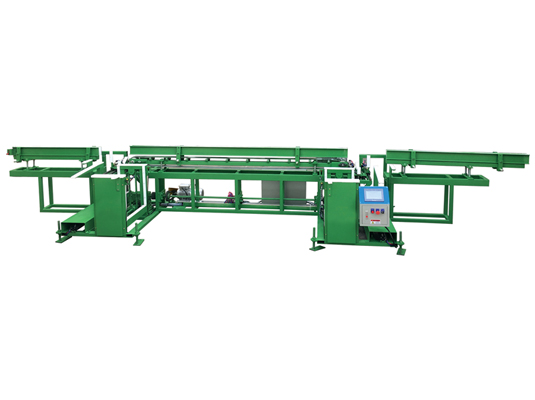

Adopt automatic loading and feeding system, automatic unloading system (Optional)

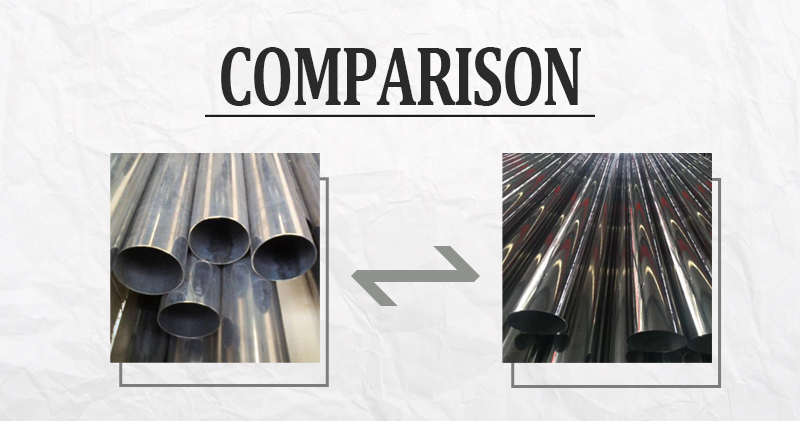

- Polishing speed arrive 20-35m/min, obtain more than 5K mirror effect
- by automatic loading and unloading system to save labors and avoid scratch
Innovation design for different pipe
diameter polishing from LX machinery
- especial for 8mm to 31.8mm by use 8 heads new design polishing machine, more mirror effect and less electricity consumption, good mirror effect more than 5K
-- standard diameter from 12.7mm to 63.5 by use 10 heads polishing machine, more stable and more durable, good mirror effect more than 5K
- from 76.2mm to 133mm by use 8 heads polishing machine, more mirror effect and economic cost
- from 159mm to 325 by use 6 heads polishing machine, more stable and more durable
| Model No. | LX-8 | LX-10 |
| Model (Unit) | 8 | 8 |
| Rate power(KW) | 5.5KW*4, 4KW*4 | 5.5KW*5, 4KW*5 |
| Pipe Range(mm) | Φ12.7-Φ63 | Φ19-Φ63 |
| Polishing speed | 20~30 m/min | 20~30 m/min |
| Voltage(V) | 380V/415V/440V | 380V/415V/440V |
| Motor Power | 3KW VFD | 3KW VFD |
| Total power(KW) | 41 | 50.5 |
| L*W*H (MM) | 5600*1270*1200 | 7020*1270*1200 |
| Model No. | LX-D10 | LX-8(new) |
| Model (Unit) | 10 | 8 |
| Rate power(KW) | All 5.5KW | All 7.5KW |
| Pipe Range(mm) | Φ50-Φ113 | Φ12.7-Φ63 |
| Polishing speed | 20~30 m/min | 20~40 m/min |
| Voltage(V) | 380V/415V/440V | 380V/415V/440V |
| Motor Power | 4KW VFD | 4KW VFD |
| Total power(KW) | 59 | 64 |
| L*W*H (MM) | 7040*1450*1350 | 7940*1245*1350 |
| Model No. | LX-D8(new) |
| Model (Unit) | 8 |
| Rate power(KW) | All 11KW |
| Pipe Range(mm) | Φ50-Φ113 |
| Polishing speed | 20~40 m/min |
| Voltage(V) | 380V/415V/440V |
| Motor Power | 4KW CVT |
| Total power(KW) | 92 |
| L*W*H (MM) | 7940*1450*1350 |
