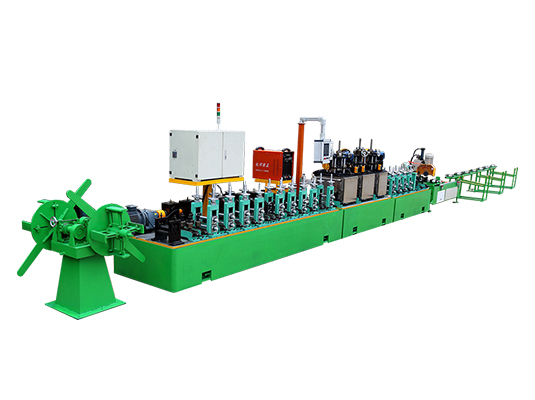

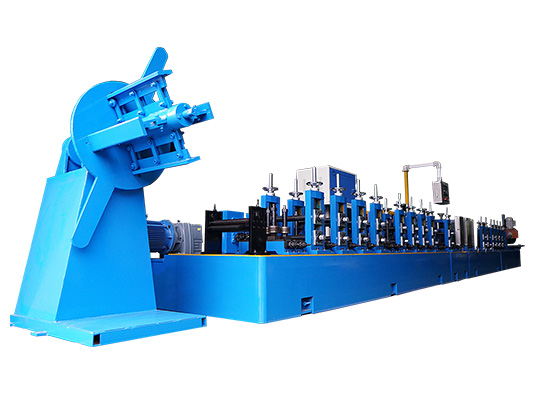

High precision, high quality and long lifetime – LX- industrial tube mills series
Suitable for various thin and thick thickness of tubes, max. 10mm by TPT welding method

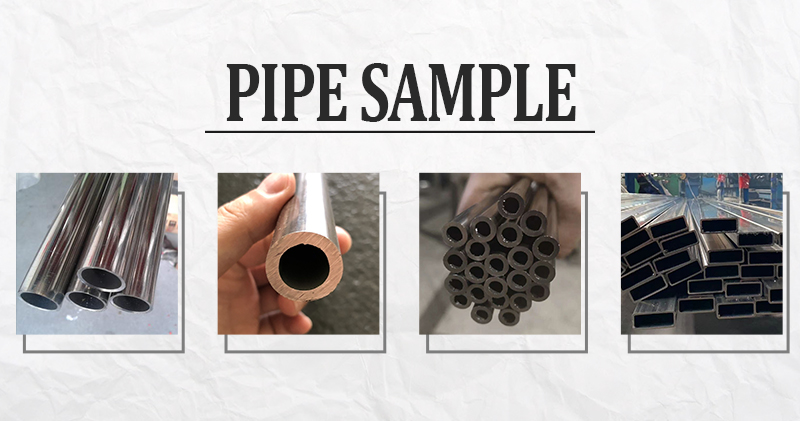

- Applicable shape: round tube, square tube, rectangular tube
- Applicable material: Stainless steel 200 series, 300 series and 400 series
- Applicable industry: industrial application liquid pipes, beverage and foods pipes, chemical pipes etc.

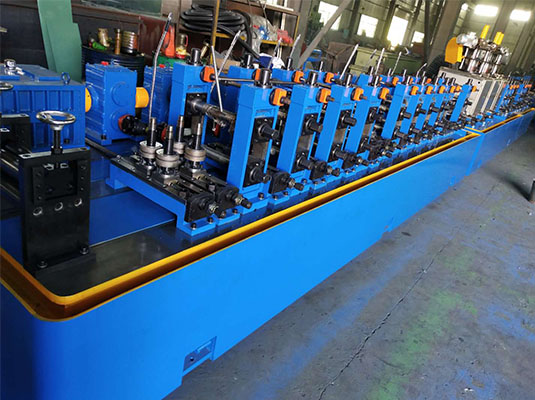

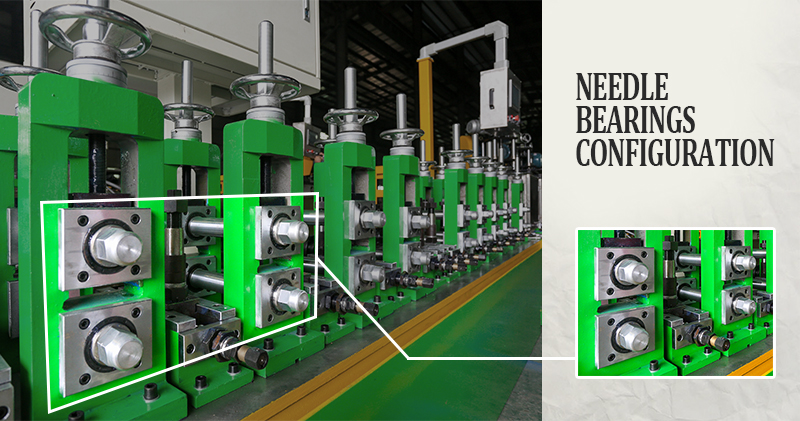

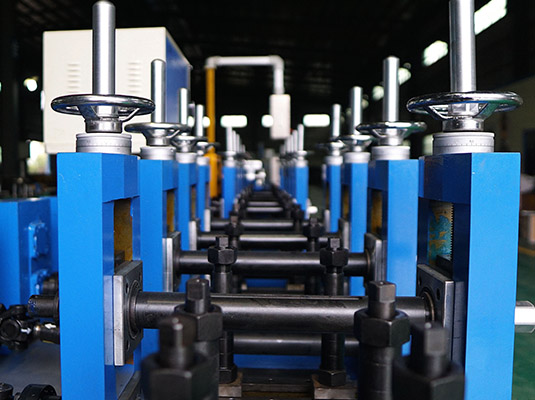

Horizontal stands by needle bearings configuration, more convenient to change and adjust roller sets
- Easier and faster to change the roller sets, just take roughly 40 minutes to change the full of roller sets
- Adopt double motor as driver, more stability, improve production speed.

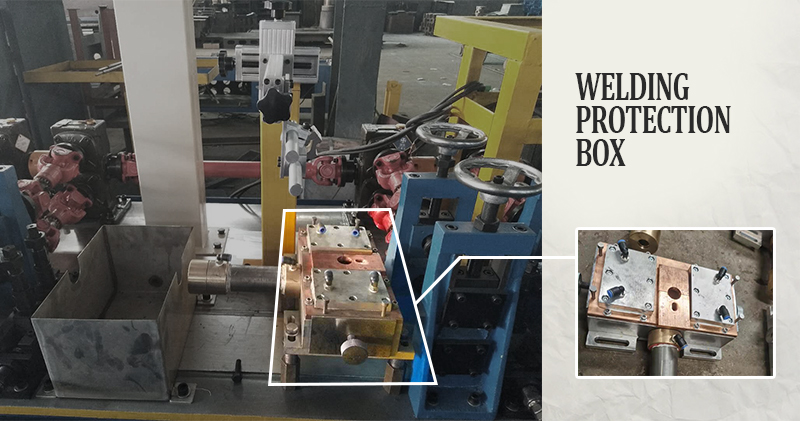

Internal and external welding protection box
- Equipped with internal and external welding protection box,obtain higher welding quality, especial for industrial pipes full welding

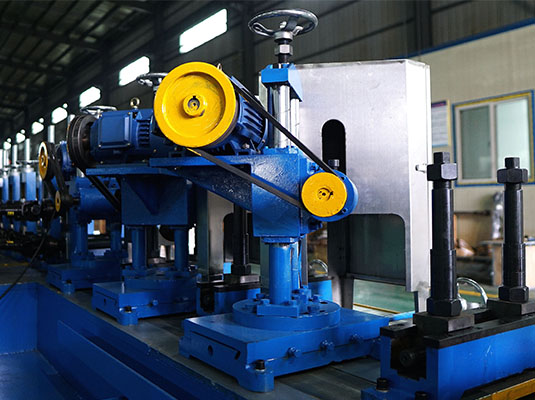

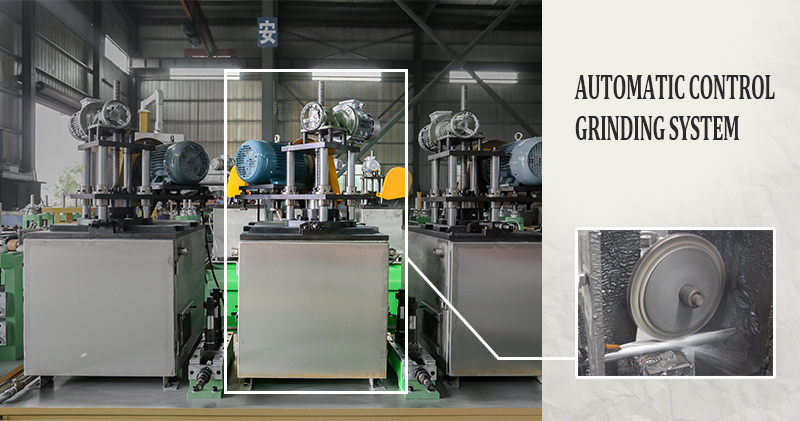

Complete sealing stainless steel materials 304 box with current induction automatic control grinding system
- Improve working environment, save labor cost,
- grinding quality higher and one engineer can handle 4 sets tube mills

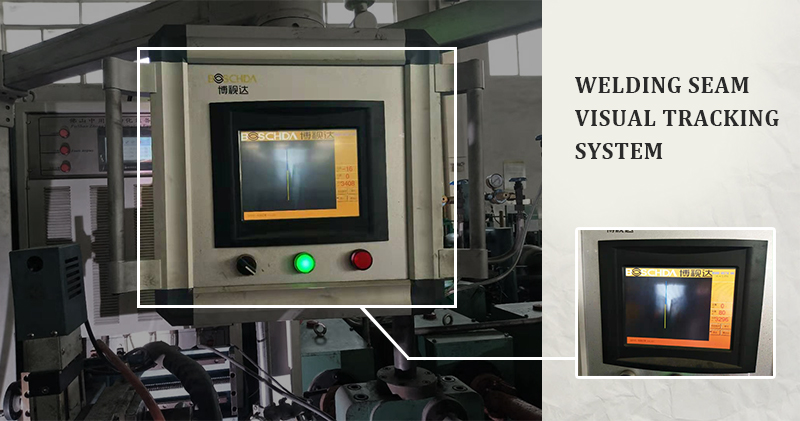

Adopt online welding seam visual tracking system
- The intelligent automatic tracking system is used to realize automatic tracking and correction when stainless steel welded pipe seam is offset, to achieve high quality welding effect.
Advanced PLC integrated control system
- Adopts advanced PLC control system, which can realize high efficiency automatic precision production, and the cutting error can be strictly controlled plus or minus 1 mm.

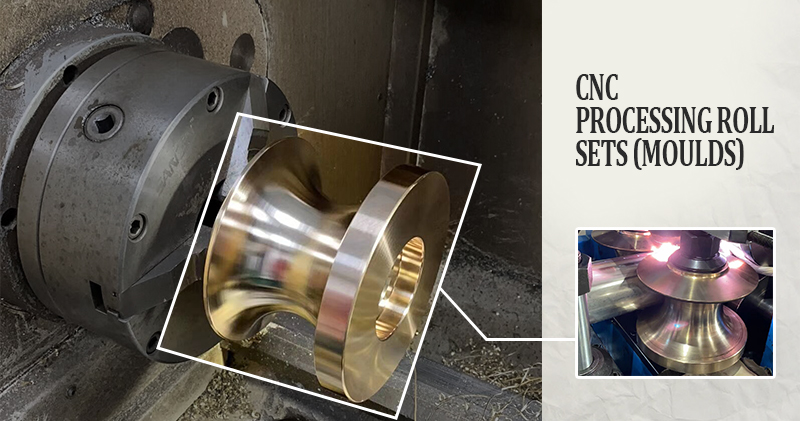

Advanced CNC processing roll sets (moulds) to obtain high precision and high quality
- Adopts raw material SKD11, D2 and Alloy copper etc.
- Hardness: HRC 63- HRC65
- Roundness tolerance: +/-0.1mm
Innovation design
for cutting stage
from LX Laser cutting

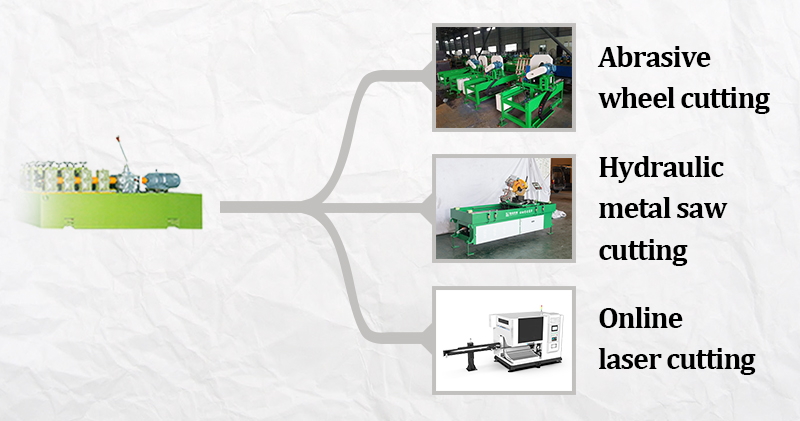

Use laser cutting machine and technology
instead of hydraulic metal saw cutting
and abrasive wheel cutting
Advantages:
- LX Laser combines the fruitful experiences in the "inline HSS saw cutter" and the fiber laser technology, launch the unique and brand new "Laser Inline Synchronous Cutting Machine"
- Exact cutting precision
- Waste lowest materials, laser cutting gap 0.1mm, HSS saw blade cutting gap around 3mm, Abrasive cutting gap around 5mm
- No burr after laser cutting, HSS saw blade cutting and abrasive cutting both need cleaning burr further and waste labor, increasing production cost
- Cut any length what clients want
- Laser cutting improve working environments.
| Model No. | G-ZG40S | G-ZG40 |
| Horizontal shaft Dia. | Φ40 | Φ40 |
| Vertical shaft Dia. | Φ30 | Φ30 |
| Pipe Range(mm) | Φ6-Φ31.8 | Φ12.7-Φ50.8 |
| wall thickness(mm) | 0.3-1.5 | 0.8-3.0 |
| Motor Power | 5.5KW*3 | 7.5KW*3 |
| Speed of Pipe/Tube | 1.0-5.0m/min | 1.0-5.0m/min |
| Model No. | G-ZG50 | G-ZG60 |
| Horizontal shaft Dia. | Φ50 | Φ60 |
| Vertical shaft Dia. | Φ35 | Φ40 |
| Pipe Range(mm) | Φ25.4-Φ76.2 | Φ63.5-Φ89 |
| wall thickness(mm) | 0.8-4.0 | 1.0-5.0 |
| Motor Power | 11KW*3 | 15KW*3 |
| Speed of Pipe/Tube | 1.0-4.0m/min | 1.0-3.0m/min |
| Model No. | G-ZG70 | G-ZG80 |
| Horizontal shaft Dia. | Φ70 | Φ80 |
| Vertical shaft Dia. | Φ45 | Φ50 |
| Pipe Range(mm) | Φ114-Φ168 | Φ133-Φ219 |
| wall thickness(mm) | 1.0-6.0 | 1.5-7.0 |
| Motor Power | 18.5KW*3 | 22KW*3 |
| Speed of Pipe/Tube | 1.0-2.5m/min | 1.0-2.0m/min |
1. What service you can provide?
- We are a professional manufacturer since 2003 in China, and provide you direct factory price.
- Additional, our factory has professional R&D team and after-sales service team to installation and debugging, guide your workers how to make pipes well.
- Depend on raw material character, for example, Jindal 201 and 304, we will offer customized roll sets to solve scratch line and needle dot, to making perfect tubes and pipes.
- For new plant, we will provide wholly sketch, design and guidance.
- For production issue, we can provide best technical solution and online video for guidance.
- Provide reasonable investment suggestion and approximate investment cost, provide investment feasible report, and offer suitable machine model to clients.
- Free for providing plant equipment drawings.
- Free for providing installation layout.
- Providing machine's installation and debugging, training and selling information.
2. For industrial pipes, how to make high quality industrial pipes?
A: firstly, our tube mill with roll sets (moulds’ design) has high precision and very stability.
B: secondly, we have fruitful experience for making industrial pipes to pass ASTM and EN standard.
C. We will guide you how to use TP and TPT to wed different thickness (especial thickness from 4.0 to 7.0mm, and 8.0 to 10.0mm)
D. We will provide extra service for clients: flaring test, hardness test, the tensile test, flattening test, ultrasonic test, water pressure testing and eddy current test, pickling etc.
3. In addition to stainless steel pipes, can your machine make pipes of other materials?
Our machine can make carbon steel pipes, mild steel pipes, galvanized steel pipes, aluminum pipes, copper pipes, titanium alloy pipes in addition to stainless steel pipes.
4. What lead time if we want to order from you?
Normally lead time is within 40 days, it is depend on orders' quantity.
5. How to get the technical support?
First, we will arrange our skilled engineers for installation, debugging and training, also we will provide online technical support by videos. Second, our engineer will visit clients by regular period
6. How many year for your machine guarantee?
1 year for wholly machine, 3 months for electrical parts, we will provide for free replacement during transportation, installation and commissioning.
