An Expert in metal Pipe
making machine/ tube mill, Since 2003
Production speed up to 25-35 m/min,

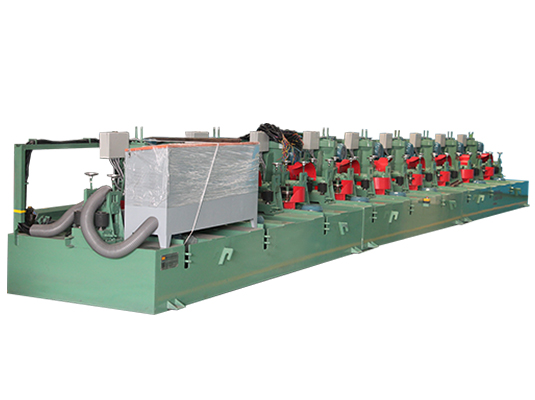

high precision and quality – LX - square tube polishing machine series
Suitable for square pipes from 10*10 to 200*200mm
- Applicable shape: square tube and rectangle pipes, slot pipes and irregular shaped-pipes
- Applicable types of material: Stainless steel and Aluminum
All mechanical parts are processed by Taiwan brand CNC
in order to keep all mechanical parts standardized and uniform
- Easier and faster to obtain original parts for replacing broken parts once occurred during production
- Ensure high precision，more stability and more durable
Adopt famous electric components to ensure running stability
- Siemens converter,

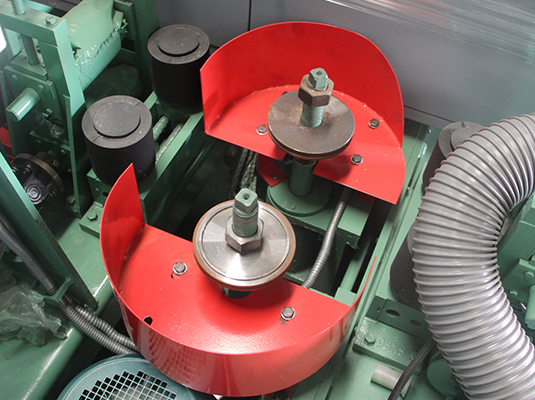

- grinding motor adopt famous Chinese Jiangcheng brand more durable
Adopt Q235B material steel plate from BaoSteel, which is within Top 5 all over this world
- Ensure more stable by raw material choose, avoid deform
- Greatly improve durable and long service time

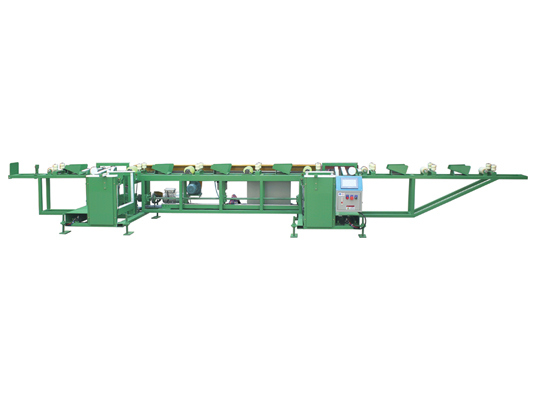

Adopt automatic loading and feeding system, automatic unloading system (Optional)

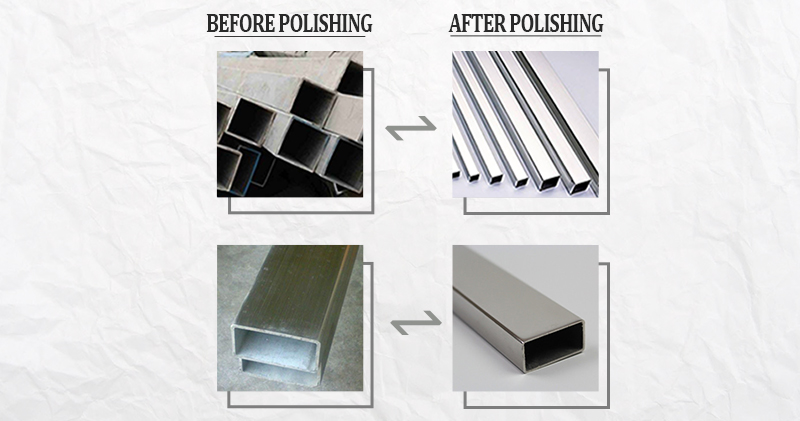

- Polishing speed arrive 25 - 35m/min, obtain more than 5K mirror effect
- by automatic loading and unloading system to save labors and avoid scratch
Innovation design for different pipe
diameter polishing from LX machinery
- from 10*10mm to 100*100mm by use standard 32 heads polishing machine, more mirror effect and less electricity consumption, good mirror effect more than 5.5K
- from 100*100mm to 200*200mm by use 24 heads polishing machine, more mirror effect and less electricity consumption, good mirror effect more than 5K
| Model No. | LX-32 | LX-BIG 24 |
| Model (Unit) | FP32 | B-FP24 |
| Rate power(KW) | 5.5KW*8, 4KW*24 | All 7.5KW |
| Pipe Range(mm) | 10*10 - 100*100 | 80*80 - 200*200 |
| Polishing speed | 20 - 35 M/MIN | 10 - 25 M/MIN |
| Voltage(V) | 380V/415V/440V | 380V/415V/440V |
| Motor Power | 3.7KW VFD | 5.5KW VFD |
| Total power(KW) | 143.7 | 185.5 |
| L*W*H (MM) | 12000*1700*1500 | 9800*1900*1600 |
| Model No. | LX-36 |
| Model (Unit) | FP36 |
| Rate power(KW) | 5.5KW*16, 4KW*20 |
| Pipe Range(mm) | 10*10 - 100*100 |
| Polishing speed | 20~35 m/min |
| Voltage(V) | 380V/415V/440V |
| Motor Power | 5.5KW VFD |
| Total power(KW) | 173.5 |
| L*W*H (MM) | 17000*1700*1500 |
