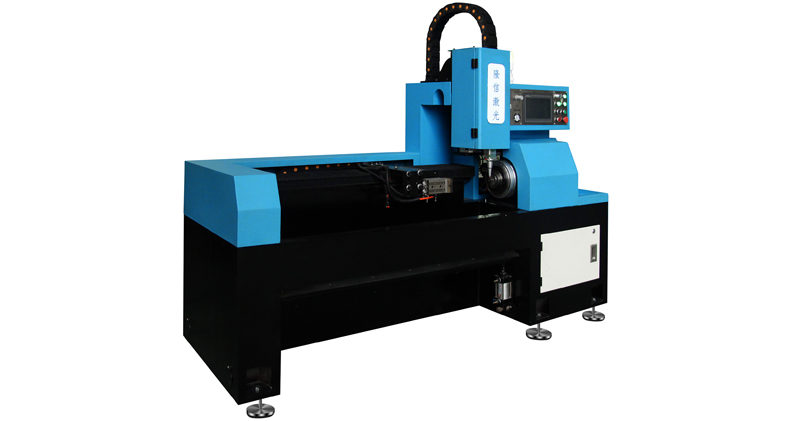

Fiber Laser Tube Cutting Machine For Water Flow Tubes
Laser pipe cutting is a cost-effective process that produces intricate parts with small tolerances in medium to high volume production runs. It is also a fast and low-cost process for prototypes or one-off parts due to the quality of the cut and the lack of finishing operations needed.
Longxin Laser Technology's Semi Automatic laser tube cutting machine especially suitable for Φ6~42MM ROUND TUBES & those only require for cut off function, such as tube mills, metal processing plants, etc.
Longxin Laser Technology's Semi Automatic Laser Tube Cutting Benefits
For Long cutting length, manual feeding is faster than automatic feeding. The Cutting speed can be 0.8 second/cut for SS304: Φ20MM × 1.05MM × 79MM ( L ). In 1 hour, it will cut 4800 pcs, while saw blade cutter shall take 8 hours.
Furthermore, only 10 minutes you can finish to replace the tube clamps. After half an hour's learning & training, one person can operate this machine.
Otherwise, because of laser cutting, the machine running smoothly, Chipless and Burr Free Cutting.
Fiber Laser Tube Cutting Machine For Water Flow Tubes
Main Techincal Parameters
| Model | LX-FL40 |
| Power of fiber laser | 300-1500W(optional) |
| Tube size range | Round tube Φ6~42MM |
| Tube thickness | 0.17-4.0mm (depends on the material) |
| Max. Raw Metarial Length | 6200MM |
| Cutting speed | Max 0.8s/ cut(depends on the thickness) |
| Max. Cutting Length | 1200MM |
| Tube Remain Length | 40MM |
| Accuracy | ±0.1MM |
Longxin Laser Technology has the capabilities to provide prototype machines to our customers at a competitive price with short lead times. We can work from samples, rough sketches, or finished engineering drawings. We can also provide Free Tube Sample Cutting. We will also fabricate parts per print when possible or supply a marked up copy of any necessary changes for customer approval prior to production.
Quality Control Standards
To ensure the best quality products possible we provide pressure testing of all finished parts and assemblies created by our 4 axis laser cutting system. Every product that leaves our facility is thoroughly inspected at all stages of production to the industry's highest standards for quality. At Longxin Laser Technology, we strive to meet or exceed customer requirements and expectations through a continued dedication to customer service, quality and productivity.
After-sales Service
Our company also provides free technical training. After the installation and commissioning, we will carry out technical training for the buyer's operators for at least 3-5 days at the buyer's site or at the seller's domestic training and repair center until the operators reach the basic normal use of the equipment.
Furthermore, We offer 1 year warranty, starts from the issue date of bill of lading. The warranty time for laser generator, laser head is 24 months. And we offer lifetime technical supports. After the expiration of the warranty, extensive software and hardware support is provided, and free upgrades are available for life.
Our engineers offer 24 hours online service and free technical support. We are a professional pipe processing equipment manufacturer with 16 years experience. We have professional R&D department and after-sales department to offer you the best solution and technical support.
