LX-GL70 laser pipe cutting machine for brass pipe air conditioning industry
9.8*0.8*465 mm stainless steel round tubes, for metal furniture manufacturing
Cost effective, Upgrade from Entry Level – LX-FL40F
Dedicated for round tubes
- Applicable types of tubes: outer diameter 10 - 40 mm / 10 - 68 mm( 0.4’’ – 1.5’’ / 0.4’’ – 2.6’’ )

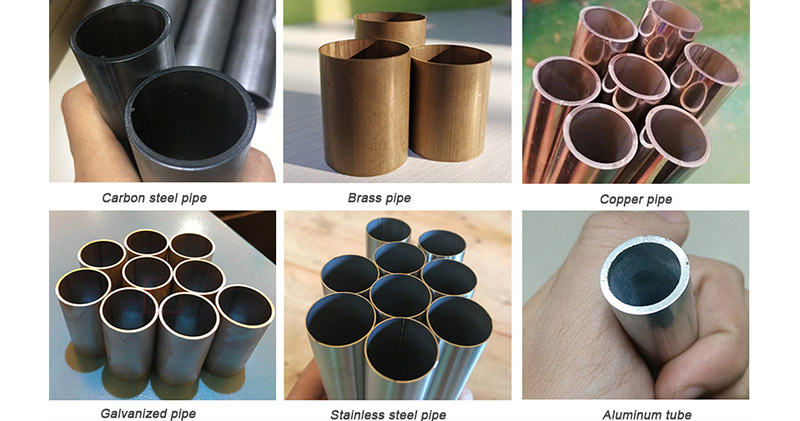

- Applicable types of material: Stainless steel, Carbon steel, Galvanized steel, Brass, Aluminum, Copper…

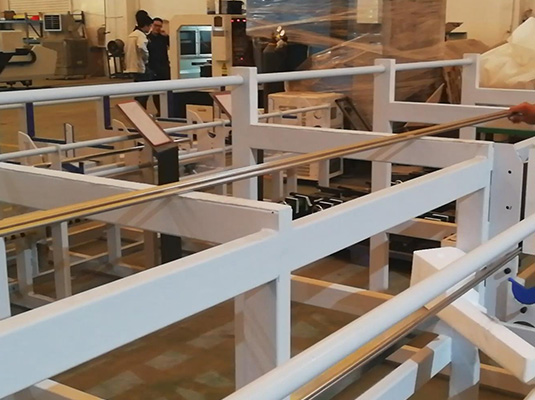

Fully automatic in slide loading, feeding and cutting
- Skip production processes and minimize the labor costs and consumables.
- Each machine can help save 3-5 workers comparing to saw blade cutting machine, greatly reduce the labor cost.
Automatic pipe’s head sensing and cutting
- The shortest tail material can reach 40mm
High speed, smooth and burr-free cutting
- Faster than circular sawing machines, can reach less than 1 second/cut
- The shortest tail material can reach 40mm
Cutting capacity
| Material | Diameter * Thickness * Length | Cutting Capacity |
| Stainless Steel | 12*0.4*252mm | 1, 500pcs/hour |
| Carbon Steel | 10*1.0*615mm | 1, 200pcs/hour |
| Carbon Steel | 9.8*0.8*465mm | 2, 000pcs/hour |
Optional function
Special spatter reduced function for inner wall cleaning
- The spatter will inevitably adhere to the inner wall of tubes during the laser cut processing. Therefore, we can add an automatic spatter reduced device to ensure that the inner wall of the finished product remains clean.
Customized version, the longest cutting length can reach 1.7 meters
Customized reverse feeding version
Air Compressor
| Model No. | LX-FL40F(A) | |
| Outside Diameter | 10-38mm | |
| Cutting Length | 30-1200mm | |
| Laser Power | 1000-2000W | |
| Laser Source | MAX/RAYCUS/IPG | |
| Laser Head | OSPRI OR SAME LEVEL | |
| L*W*H (mm) | 9450*1330*1590 | |
| Voltage | 380V 50Hz 3Phase (can be customized) | |
| Servo motor & driver | DELTA | |
| Pneumatic system | AIRTEC | |
| Electrical proportional valve | SMC | |
| Air switch & relay | SCHNEIDER | |
| Power supply | SIEMENS | |
1. We have one pipe tube that is mid carbon content(SAE1020), diameter 10mm*1.25mm(wall thickness) , is this ok for machine?
Yes, this pipe is ok for our model LX-FL40. It is suitable for pipe diameter below 42mm, steel / stainless steel thickness within 3mm under 1000W laser power.
2. How many hours of working life has the laser? What is the spare part cost approximately?
Laser source life 100,000 hours (more than 20 years). Spare part is the protective lens and nozzle of the laser head. Each can use 2-5 months, we offer each 5pcs for spare and free of charge. For additional quantity, each cost 16USD/ pc.
3. Is there a difference between MAX / RAYCUS / IPG?
The quality of lasers made in China is gradually mature and stable. According to our testings, Max and Raycus are similar in performance. IPG is rarely used in the market within 6KW, unless customers concern on the brand and do not care about the cost. This is because IPG does not show obvious difference from the other two within 6KW power.The share of IPG lasers in China is also declining year by year, in 2018 was 48% and went down to 30% 2019. The share of Max and Raycus are similar, both about 20%.In addition, the laser source is only one part of the machine. Customers should pay more attention on the performance and efficiency of the whole equipment.
4. Regarding stabilizing electric transformer, for 220V 60hz e phase, how many KVA is required?
The transformer capacity is depends on the laser power. For laser power 1000W, it requires 40KVA.
5. PLC, has English or maybe Spanish language?
Our touch screen has both English and Chinese language. We can add Spanish or other language with your help for the translation.
6. Can we send you sample of our pipe in order for you to show us cutting of our material?
Yes, we always welcome customer send us their pipe for testing. Kindly send us pipe length ≥600mm, qty ≥ 3pcs for each size. The longer size and the more quantity the better.
7. What is the material loss every time laser cuts? I mean, when laser is cutting what is the length waste for every cut?
The laser cutting loss is very small, only 0.05-0.1mm/cut, while saw cutting loss would be about 2-5mm/cut.
8. After laser cuts, is the edge hardened by the laser temperature? Can we flare pipe easily without problem after cutting?
The hardening effects are different on different pipe materials. We suggest customers send us their tubes for testing and check the result.
9. Under what circumstances should I choose to use a laser machine?
If cutting quantity is more than thousand pieces per day, we suggest laser machine. As it has advantage on the cutting loss, operation cost(0.6USD/hour) and high efficiency(fast and no burr). In long term usage, laser machine can bring you more profits.
10. When can it cover the machine cost and gain profits for me?
According to our surveys, usually it would take about 0.5 to 1.5 years for our customers to cover the machine cost by the profits they obtained on the laser machine.
